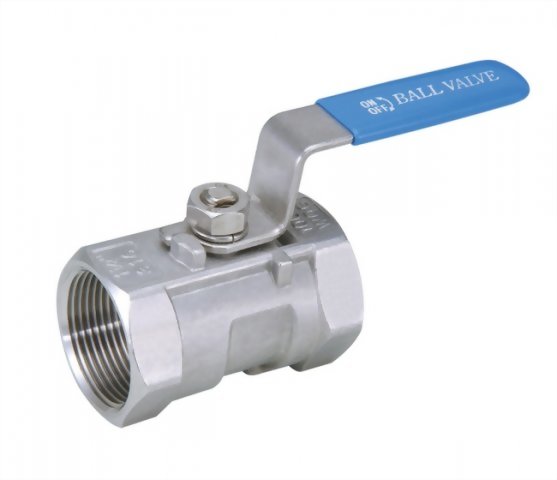

1 PC BALL VALVE - A1T

One-Piece Ball Valve : Simplified Design, Superior Performance
The one-piece (1-PC) ball valve is renowned for its cost-effectiveness and straightforward installation. Unlike multi-piece ball valves that are assembled from several components, a 1-PC ball valve features a body cast as a single, solid unit. This innovative design offers several significant advantages:

Enhanced Cost-Effectiveness : Streamlined manufacturing leads to lower production costs.
Superior Robustness : A single-piece body inherently offers greater structural integrity.
Exceptional Leak Prevention : With no body joints or connections, the risk of leaks is virtually eliminated.

Model : A1T

Please select which you want to ask the following product specifications：

*Selection Size ::

Q'ty :

1-PC BALL VALVE

REDUCED PORT

INVESTMENT CASTING

PTFE SEAT (Target Valve's standard),

WORKING PRESSURE : 1000 WOG / PN63

END CONNECTION : FEMALE THREADED ENDS

AVAILABLE SIZE : ¼" - 2"

(DN8 - DN50)

MATERIAL : CF8M (SS316)

TARGET VALVE provides seating options in RPTFE, TFM1600, and TFM4215, allowing you to choose the ideal material for specific working temperature ranges.

ACCEPTABLE OTHER MATERIAL OF CF8 (SS304) / CF3M (SS316L) / WCB WITH MINIMUM ORDER QUANTITY.

HANDLE OPTIONS :

TARGET VALVE offers a variety of handle type to suit diverse application needs, including :

*LEVER OPERATION (-NL) : This is the standard handle type, providing easy quarter-turn operation.

**LOCKING OPERATION (-HL) : Equipped with a locking plate and padlock hole, this handle allows for securing the valve in either the open or closed position for enhanced safety and security.

***ABLE TO BUTTERFLY HANDLE (-BH) (SIZE : ¼" ~ 1") : A compact, winged handle designed for space-constrained applications or where quick, intuitive operation is desired.

These valves are ideal for applications that require a simple, reliable, and cost-effective shut-off solution, with the added flexibility of various handle configurations.

1-PC Ball Valve means the valve cannot be taken apart for cleaning. The advantage is that the valve will be low cost and robust. As a result of the valve body being one piece is that a smaller ball has to be used leading to a reduced port, more commonly called a reduced bore. This means that flow is reduced through the valve, since the ball bore is one size smaller than the pipe size.

In Reduced port (more commonly known as reduced bore) ball valves, flow through the valve is one pipe size smaller than the valve's pipe size resulting in flow area being smaller than pipe.

Floating Ball Valve– A floating ball valve is not held in place by a trunnion, and instead is attached only to the stem. This sometimes causes the ball to float slightly downstream. However, when this happens, the ball presses against the seat, creating a positive seal.

Production of chemicals,

Gas Industry, Oil refineries, Water treatment,

Industrial Facilities,

Building Facilities,

Household hardware,

Related Products

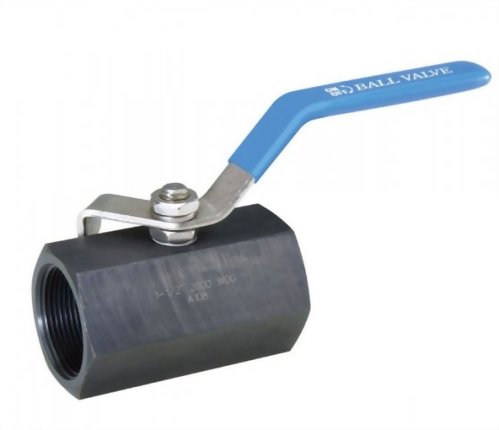

1 PC BALL VALVE - X1TP
