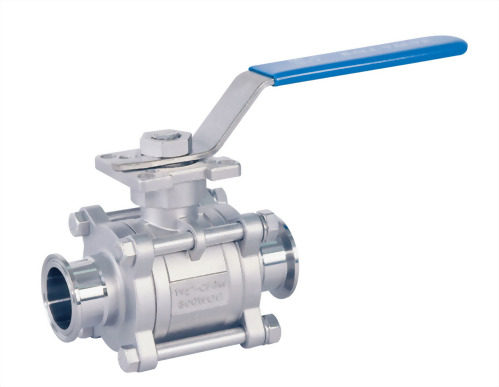

3 PC SANITARY BALL VALVE
WITH CAVITY FILLED PTFE SEAT
END CONNECTION: TUBE END (US/3A)
WITH ISO 5211 DIRECT MOUNTING PAD
WORKING PRESSURE: 1000 WOG / PN63 (½" ~ 2")
800 WOG / PN40 (2½" ~ 4")
AVAILABLE SIZE: ½" - 4" 1¼" is not available.
(DN15 - DN100)
MATERIAL: CF8M (SS316)
ACCEPTABLE OTHER MATERIAL OF CF8 (SS304) / CF3M (SS316L) / WCB WITH MINIMUM ORDER QUANTITY.
OPTIONS : LEVER OPERATION / LOCKING OPERATION / BARE STEM
SPRING RETURN ACTUATORS / DOUBLE ACTING ACTUATORS / ELECTRIC
The sizing of pneumatic actuators has been done considering a minimum supply pressure of 4.5 bar.
LIMIT SWITCH / SOLENOID VALVE
REPAIR KIT => SEAT, JOINT GASKET, THRUST WASHER, O-RING, STEM PACKING, THRUST WASHER
3 PC SANITARY BALL VALVE is a hygienic ball valve designed for use as a product valve, in applications within food, beverage, pharmaceutical and chemical industries. The full bore design with zero flow restriction makes SANITARY BALL VALVE the optimum choice for viscous or particulate liquids.
Production of chemicals,
Gas Industry, Oil refineries, Water treatment,
