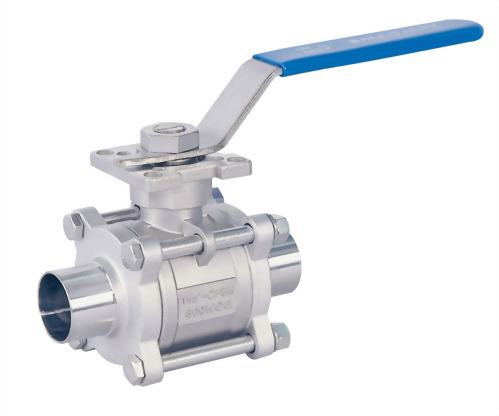

3 PC SANITARY BALL VALVE - H3SC

3 PC SANITARY BALL VALVE

STANDARD PORT

INVESTMENT CASTING

WITH CAVITY FILLED PTFE SEAT

END CONNECTION:  ASME BPE-2005

WITH ISO 5211 DIRECT MOUNTING PAD

WORKING PRESSURE: 1000 WOG / PN63  (½" ~ 2")

                                          800 WOG / PN40 (2½" ~ 4")

AVAILABLE SIZE:       ½" - 4"                     1¼" is not available.

                                (DN15 - DN100)

MATERIAL: CF8M (SS316)

ACCEPTABLE OTHER MATERIAL OF CF3M (SS316L) WITH MINIMUM ORDER QUANTITY.

OPTIONS : LEVER OPERATION / LOCKING OPERATION / BARE STEM

                   SPRING RETURN ACTUATORS / DOUBLE ACTING ACTUATORS / ELECTRIC ACTUATORS
                    The sizing of pneumatic actuators has been done considering a minimum supply pressure of 4.5 bar.

                    LIMIT SWITCH /  SOLENOID VALVE

                    REPAIR KIT => SEAT, JOINT GASKET, THRUST WASHER, O-RING, STEM PACKING, THRUST WASHER

3 PC SANITARY BALL VALVE is a hygienic ball valve designed for use as a product valve, in applications within food, beverage, pharmaceutical and chemical industries. The full bore design with zero flow restriction makes SANITARY BALL VALVE the optimum choice for viscous or particulate liquids.

Production of chemicals,

Gas Industry, Oil refineries, Water treatment,

Industrial Facilities,
