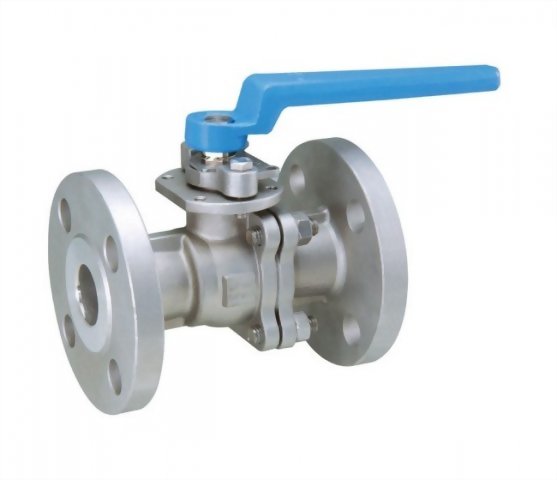

2 PC FLANGED BALL VALVE - V2FC300

2-PC FLANGED BALL VALVE

FULL PORT

INVESTMENT CASTING

PTFE SEAT

WORKING PRESSURE: ANSI CLASS 300 (RF)

FLANGE DIMENSION : ANSI B16.5

FACE TO FACE DIMENSION : ANSI B16.10

AVAILABLE SIZE:       ½" - 4"                       1¼" & 2½" are not available at this moment.

                                (DN15 - DN100)

TOP GLAND :                           V2FC300                                  /                           I2FC300

                         (WITHOUT ISO 5211 MOUNTING PAD)         /    (WITH GLAND ISO 5211 MOUNTING PAD)

MATERIAL: CF8M (SS316)

ACCEPTABLE OTHER MATERIAL OF CF8 (SS304) / CF3M (SS316L) / WCB WITH MINIMUM ORDER QUANTITY.

OPTIONS : LEVER OPERATION

                   / LOCKING DEVICE ON VALVE BODY

                   / BARE STEM

                   SPRING RETURN ACTUATORS / DOUBLE ACTING ACTUATORS / ELECTRIC ACTUATORS
                   The sizing of pneumatic actuators has been done considering a minimum supply pressure of 4.5 bar.

                    LIMIT SWITCH /  SOLENOID VALVE

                    REPAIR KIT => SEAT, JOINT GASKET, THRUST WASHER, STEM PACKING,

A full port or more commonly known full bore ball valve has an over-sized ball so that the hole in the ball is the same size as the pipeline resulting in lower friction loss.

Flow is unrestricted but the valve is larger and more expensive so this is only used where free flow is required, for example in pipelines which require pigging.

Floating Ball Valve– A floating ball valve is not held in place by a trunnion, and instead is attached only to the stem.
This sometimes causes the ball to float slightly downstream. However, when this happens, the ball presses against the seat, creating a positive seal.

Production of chemicals,

Gas Industry, Oil refineries, Water treatment,

Industrial Facilities,

Building Facilities,
