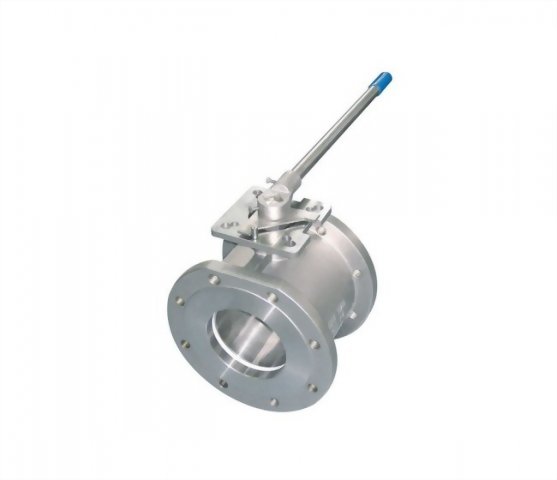

• 1 PC FLANGED 5" & 6" BALL VALVE

1 PC FLANGED BALL VALVE - H1FPN16

1-PC Flanged Ball Valve is wafer type. This design is for short face to face length and quick easy assembly.

Yueng Shing is a valve manufacturers in Taiwan. We produce 1-PC, 2-PC and 3-PC flanged ball valve with Class 150, JIS 10K, DIN PN16 and DIN PN40.

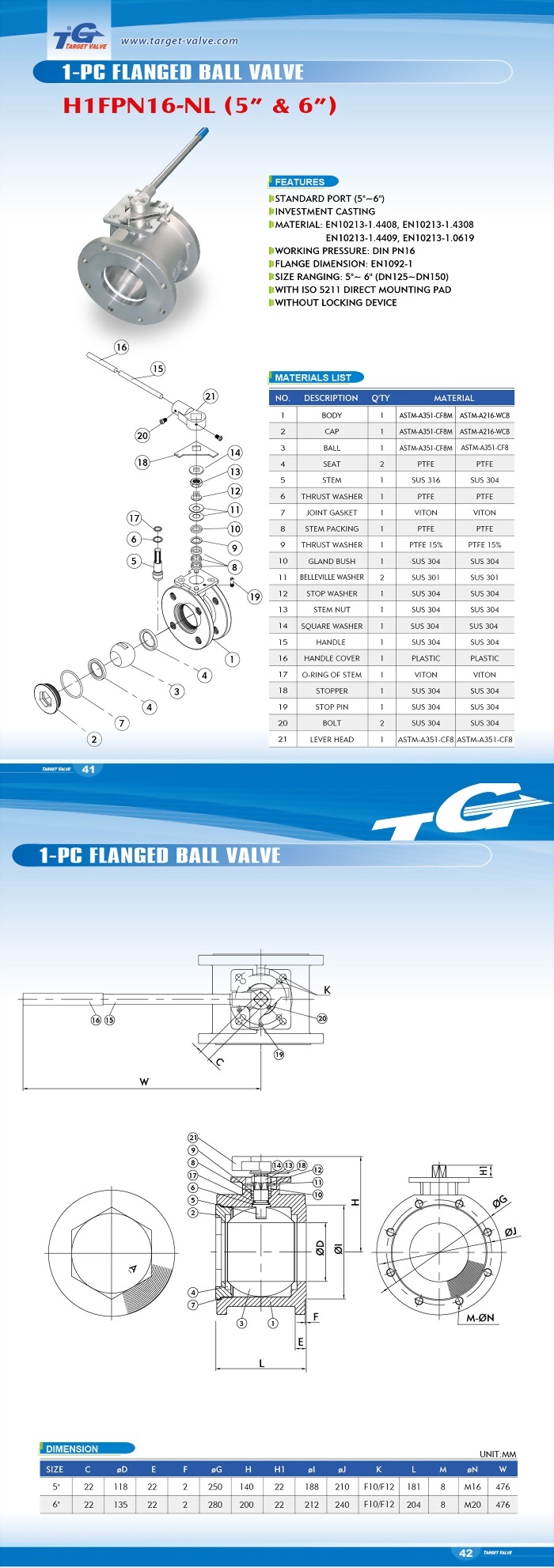

Model : H1FPN16-NL

  • 1-PC FLANGED BALL VALVE

  • FULL PORT

    INVESTMENT CASTING

    PTFE SEAT

    WORKING PRESSURE: DIN PN16 (RF)

    FLANGE DIMENSION: EN1092-1

    AVAILABLE SIZE:          5" -  6"

                                    (DN125 - DN150)

    MATERIAL: 1.4408 (SS316)

    ACCEPTABLE OTHER MATERIAL OF 1.4308 (SS304) / 1.4409 (SS316L) / 1.0619 WITH MINIMUM ORDER QUANTITY

1 PC FLANGED BALL VALVE - H1FPN16

OPTIONS : LEVER OPERATION / LOCKING OPERATION / BARE STEM

                   SPRING RETURN ACTUATORS / DOUBLE ACTING ACTUATORS / ELECTRIC ACTUATORS
                    The sizing of pneumatic actuators has been done considering a minimum supply pressure of 4.5 bar.

                    LIMIT SWITCH /  SOLENOID VALVE


Floating Ball Valve– A floating ball valve is not held in place by a trunnion, and instead is attached only to the stem. This sometimes causes the ball to float slightly downstream. However, when this happens, the ball presses against the seat, creating a positive seal.

Production of chemicals,

Gas Industry, Oil refineries, Water treatment,

Industrial Facilities,

Building Facilities,
