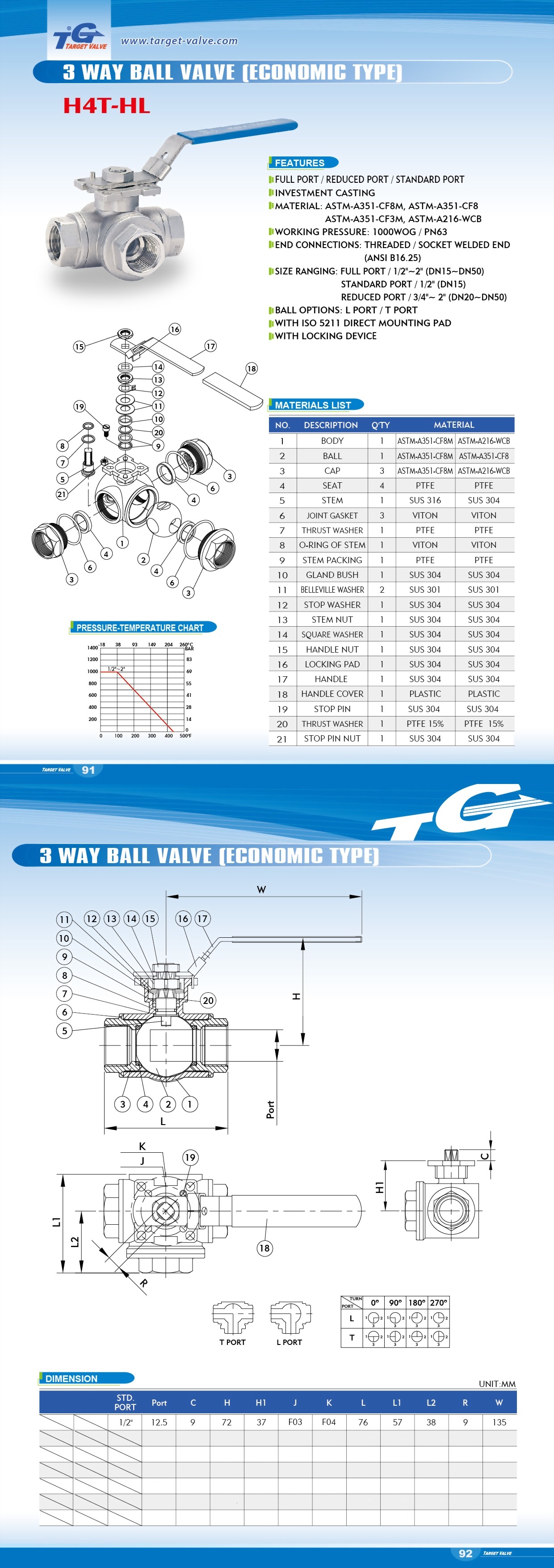

• 4 PC BALL VALVE - H4T (STANDARD PORT)

3 WAY BALL VALVE - H4T (STANDARD PORT)

Our 3 Way ball valve is economic type. H4T can be equipped with a manual handle or with direct mount pneumatic or electric actuators.
There are 2 types: L-port and T-port.
The Stainless Steel Ball Valve is a universal product used Industrial and general utility applications.
Model : H4T (STANDARD PORT)

4 PC BALL VALVE - STANDARD PORT

3 WAY

INVESTMENT CASTING

PTFE SEAT

WORKING PRESSURE: 1000 WOG / PN63

WITH ISO 5211 DIRECT MOUNTING PAD

                                                        H4T                     /                     H4SW
END CONNECTION:  FEMALE THREADED ENDS / SOCKET WELDED END

BALL OPTIONS : L PORT / T PORT

AVAILABLE SIZE:        ½"

                                  (DN15)

MATERIAL: CF8M (SS316)

ACCEPTABLE OTHER MATERIAL OF CF8 (SS304) / CF3M (SS316L) / WCB WITH MINIMUM ORDER QUANTITY.

4 PC BALL VALVE - H4T (STANDARD PORT)

OPTIONS : LEVER OPERATION / LOCKING OPERATION / BARE STEM

                   SPRING RETURN ACTUATORS / DOUBLE ACTING ACTUATORS / ELECTRIC ACTUATORS
                      The sizing of pneumatic actuators has been done considering a minimum supply pressure of 4.5 bar.

                    LIMIT SWITCH /  SOLENOID VALVE

                    REPAIR KIT => SEAT, JOINT GASKET, THRUST WASHER, O-RING OF STEM, STEM PACKING, THRUST WASHER

Production of chemicals,

Gas Industry, Oil refineries, Water treatment,

Industrial Facilities,

Building Facilities,
