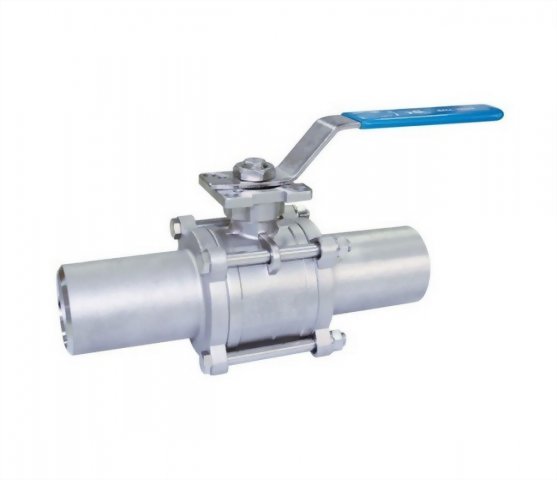

• 3 PC EXTENDED BUTT WELD BALL VALVE

3 PC BALL VALVE - H3EB

The 3 piece ball valve is available with threaded, socket weld (SW), butt weld (BW), extended socket weld.
The 3 piece body construction enables valve in-line maintenance and replacement of internal parts.
Our 2 Inch Ball valve working pressure is 1000 WOG /PSI.
Model : H3EB

3-PC BALL VALVE - EXTENDED BUTT WELD

FULL PORT

INVESTMENT CASTING

PTFE SEAT

WITH ISO 5211 DIRECT MOUNTING PAD

WORKING PRESSURE: 1000 WOG (½" - 2")
                                            800WOG (2-½" - 4")

END CONNECTION:                   (H3EB)
                                  EXTENDED BUTT WELDED END (ASTM-A312)

AVAILABLE SIZE:      ½"  -  4"
                                (DN15 - DN100)

MATERIAL: CF8M (SS316)

ACCEPTABLE OTHER MATERIAL OF CF8 (SS304) / CF3M (SS316L) / WCB WITH MINIMUM ORDER QUANTITY.

3 PC EXTENDED BUTT WELD BALL VALVE - H3EB

OPTIONS : LEVER OPERATION (-NL) / LOCKING OPERATION (-HL) / BARE STEM

                   SPRING RETURN ACTUATORS (-SA) / DOUBLE ACTING ACTUATORS (-DA) / ELECTRIC ACTUATORS (-EA)
                   The sizing of pneumatic actuators has been done considering a minimum supply pressure of 4.5 bar.

                   LIMIT SWITCH /  SOLENOID VALVE

                   REPAIR KIT => SEAT, JOINT GASKET, THRUST WASHER, O-RING, STEM PACKING, THRUST WASHER


A full port or more commonly known full bore ball valve has an over-sized ball so that the hole in the ball is the same size as the pipeline resulting in lower friction loss. Flow is unrestricted but the valve is larger and more expensive so this is only used where free flow is required, for example in pipelines which require pigging.


Floating Ball Valve– A floating ball valve is not held in place by a trunnion, and instead is attached only to the stem. This sometimes causes the ball to float slightly downstream. However, when this happens, the ball presses against the seat, creating a positive seal.

Production of chemicals,

Gas Industry, Oil refineries, Water treatment,

Industrial Facilities,

Building Facilities,
