• 1 PC FLANGED BALL VALVE WITH LOCKING OPERATION

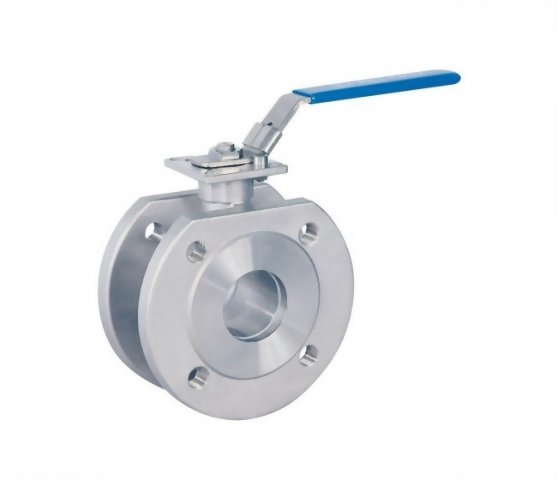

1 PC FLANGED BALL VALVE - H1FC150

1-PC Flanged Ball Valve is wafer type. This design is for short face to face length and quick easy assembly.
1-PC flanged ball valve has ISO 5211 direct mounting pad. It can be assemble pneumatic actuator.
Yueng Shing is a valve manufacturers in Taiwan. We produce 1-PC, 2-PC and 3-PC flanged ball valve with Class 150, JIS 10K, DIN PN16 and DIN PN40.
Model : H1FC150

1-PC FLANGED BALL VALVE

FULL PORT

INVESTMENT CASTING

PTFE SEAT

WORKING PRESSURE: ANSI CLASS 150 (RF)



FLANGE DIMENSION: EN1759-1


AVAILABLE SIZE:       ½" - 4"

                                (DN15 - DN100)


MATERIAL: CF8M (SS316)

ACCEPTABLE OTHER MATERIAL OF CF8 (SS304) / CF3M (SS316L) / WCB WITH MINIMUM ORDER QUANTITY.

1 PC FLANGED BALL VALVE - H1FC150

OPTIONS : LEVER OPERATION / LOCKING OPERATION / BARE STEM


                   SPRING RETURN ACTUATORS / DOUBLE ACTING ACTUATORS / ELECTRIC ACTUATOR
                      The sizing of pneumatic actuators has been done considering a minimum supply pressure of 4.5 bar.


                    LIMIT SWITCH /  SOLENOID VALVE



Floating Ball Valve– A floating ball valve is not held in place by a trunnion, and instead is attached only to the stem. This sometimes causes the ball to float slightly downstream. However, when this happens, the ball presses against the seat, creating a positive seal.

Production of chemicals,

Gas Industry, Oil refineries, Water treatment,

Industrial Facilities,

Building Facilities,
