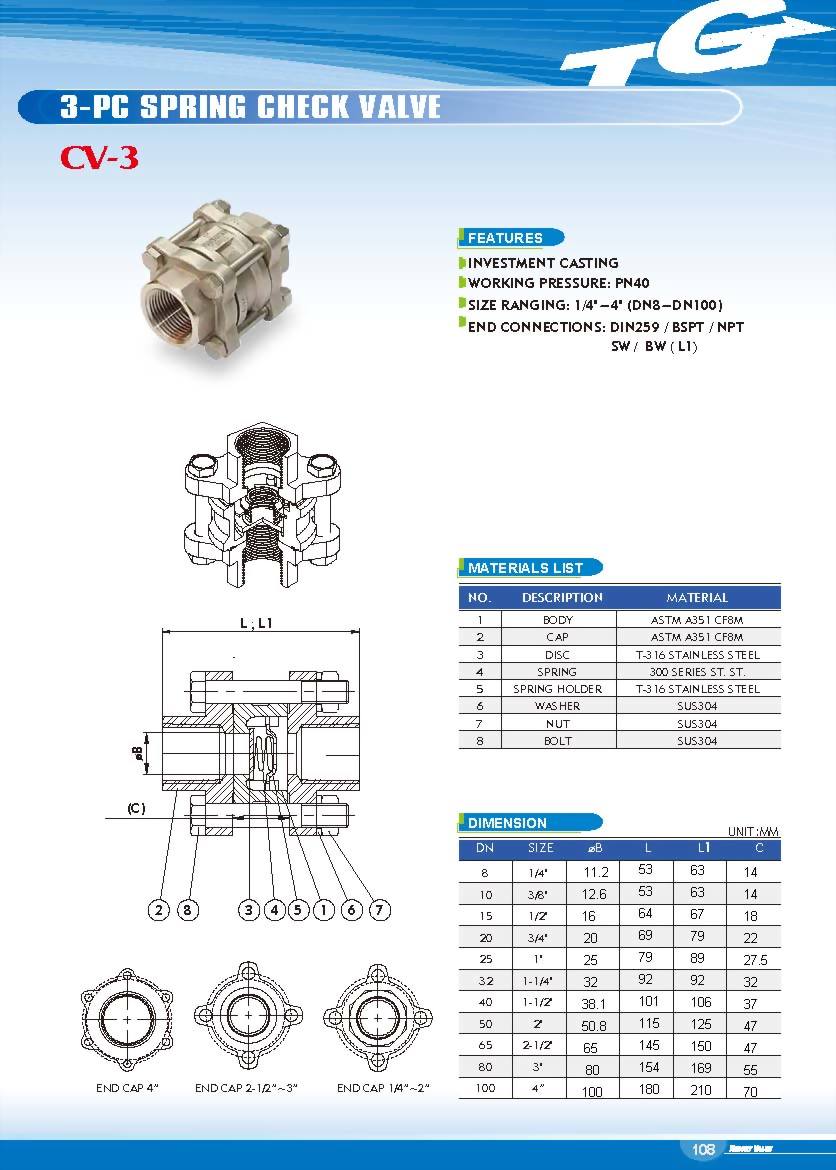

3-PC Spring Check Valve - CV-3

SPRING CHECK VALVE
SPRING OPENING WORKING : 0.5 kg/cm²
Model : CV-3

Please select which you want to ask the following product specifications：

*Selection:
      • 3 PC SPRING CHECK VALVE
      • INVESTMENT CASTING
      • WORKING PRESSURE: 800 PSI
      • END CONNECTIONS : FEMALE THREADED END / SOCKET WELDED / BUTT WELDED

      • AVAILABLE SIZE:       ¼" - 4"

                                          (DN8 - DN100)

        MATERIAL: CF8M (SS316)

3-PC SPRING CHECK VALVE - CV-3


SPRING OPENING WORKING : 0.5 kg/cm²

Production of chemicals,

Gas Industry, Oil refineries, Water treatment,

Industrial Facilities,

Building Facilities,
