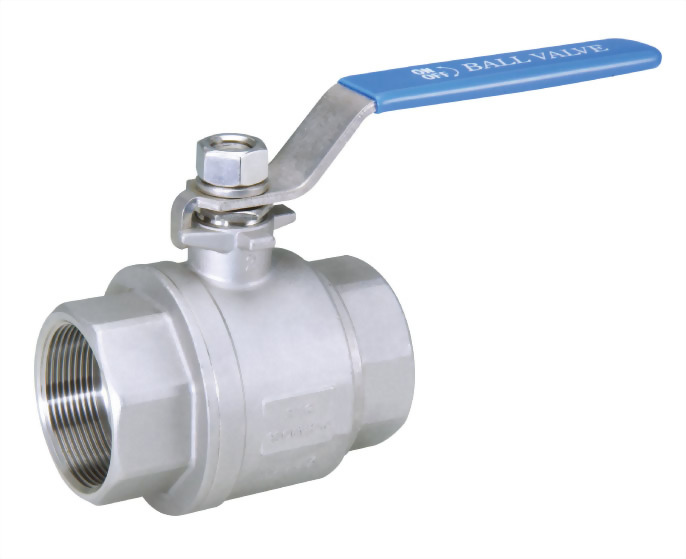

2-PC BALL VALVE

OCTAGON CAP

INVESTMENT CASTING

PTFE SEAT

WORKING PRESSURE : 1000 WOG / PN63 ( ¼" - 2")

                                           800 WOG / PN40 (2-½" - 3")

END CONNECTIONS : FEMALE THREADED END

AVAILABLE SIZE:     ¼" - 3"

                                   (DN8 - DN80)

MATERIAL: CF8M (SS316)

ACCEPTABLE OTHER MATERIAL OF CF8 (SS304) / CF3M (SS316L) / WCB WITH MINIMUM ORDER QUANTITY.

Handle Options :

Target Valve offers a variety of handle types to suit diverse application needs, including:

*LEVER OPERATION (-NL) : This is the standard handle type, providing easy quarter-turn operation.

**LOCKING OPERATION (-HL) : Equipped with a locking plate and padlock hole, this handle allows for securing the valve in either the open or closed position for enhanced safety and security.

***Butterfly Handle (-BH) (Size From ¼" To 1") : A compact, winged handle designed for space-constrained applications or where quick, intuitive operation is desired.

These valves are ideal for applications that require a simple, reliable, and cost-effective shut-off solution, with the added flexibility of various handle configurations.

2-PC ball valves are designed for easier maintenance compared to some other valve types. They can be disassembled for cleaning or repair without removing the entire valve from the pipeline, though this is not recommended for high-cycle or high-pressure applications.

A full port or more commonly known full bore ball valve has an over-sized ball so that the hole in the ball is the same size as the pipeline resulting in lower friction loss. Flow is unrestricted but the valve is larger and more expensive so this is only used where free flow is required, for example in pipelines which require pigging.

Floating Ball Valve– A floating ball valve is not held in place by a trunnion, and instead is attached only to the stem. This sometimes causes the ball to float slightly downstream. However, when this happens, the ball presses against the seat, creating a positive seal.

Production of chemicals,

Gas Industry, Oil refineries, Water treatment,

Industrial Facilities,

Building Facilities,

Household Hardware,
