• 2 PC BALL VALVE - H2FC150

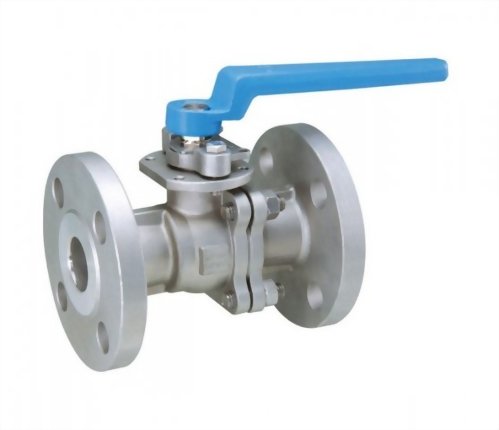

2 PC FLANGED BALL VALVE - H2FC150

2 PC flanged ball valve is mature technology for economic reasons.
Our 2 PC flanged ball valve has ISO 5211 Direct Mounting Pad.

Yueng Shing is a ball valves manufacturers in Taiwan. We produce 1-PC, 2-PC and 3-PC flanged ball valve with Class 150, Class 300, JIS 10K, DIN PN16 and DIN PN40.
Model : H2FC150

2-PC FLANGED BALL VALVE

FULL PORT

INVESTMENT CASTING

PTFE SEAT

WORKING PRESSURE: ANSI CLASS 150 (RF)

FLANGE DIMENSION:  ANSI B16.5

FACE TO FACE DIMENSION : ANSI B16.10


AVAILABLE SIZE:       ½" - 4"

                                (DN15 - DN50)


MATERIAL: CF8M (SS316)

ACCEPTABLE OTHER MATERIAL OF CF8 (SS304) / CF3M (SS316L) / WCB WITH MINIMUM ORDER QUANTITY.

2 PC FLANGED BALL VALVE - H2FC150

OPTIONS : LEVER OPERATION / LOCKING OPERATION / BARE STEM

                   SPRING RETURN ACTUATORS / DOUBLE ACTING ACTUATORS / ELECTRIC ACTUATORS
                   The sizing of pneumatic actuators has been done considering a minimum supply pressure of 4.5 bar.

                   LIMIT SWITCH /  SOLENOID VALVE

                   REPAIR KIT => SEAT, THRUST WASHER, JOINT GASKET, STEM PACKING, THRUST WASHER, O-RING

Production of chemicals,

Gas Industry, Oil refineries, Water treatment,

Industrial Facilities,

Building Facilities,
