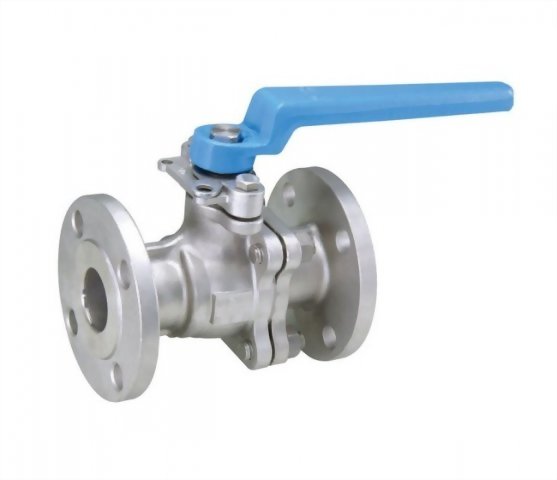

• 2 PC FLANGED BALL VALVE - A2FJ10K

2 PC FLANGED BALL VALVE - A2FJ10K

2 PC flanged ball valve is mature technology for economic reasons.
Our 2 PC flanged ball valve can use gland for ISO 5211 Mounting Pad.
Yueng Shing is a ball valves manufacturers in Taiwan. We produce 1-PC, 2-PC and 3-PC flanged ball valve with Class 150, Class300, JIS 10K, DIN PN16 and DIN PN40.
Model : A2FJ10K

2-PC FLANGED BALL VALVE

FULL PORT

INVESTMENT CASTING

PTFE SEAT

WORKING PRESSURE: JIS 10K (RF)

FLANGE DIMENSION : JIS B2220

FACE TO FACE DIMENSION : JIS B2002


AVAILABLE SIZE:      ½" - 4"                                     1¼" is not available at this moment.

                                (DN15 - DN100)


TOP GLAND :                           A2FJ10K                                  /                           I2FJ10K

                         (WITHOUT ISO 5211 MOUNTING PAD)         /    (WITH GLAND ISO 5211 MOUNTING PAD)


MATERIAL: SCS14A (SS316)

ACCEPTABLE OTHER MATERIAL OF SCS13A (SS304) / SCS16A (SS316L) / WCB WITH MINIMUM ORDER QUANTITY.

2 PC FLANGED BALL VALVE - A2FJ10K

OPTIONS : LEVER OPERATION

                    WITHOUT GLAND

                      / LOCKING OPERATION

                  WITH GLAND - I2FJ10K

                    / BARE STEM


                   SPRING RETURN ACTUATORS / DOUBLE ACTING ACTUATORS / ELECTRIC ACTUATORS
                    The sizing of pneumatic actuators has been done considering a minimum supply pressure of 4.5 bar.

                    LIMIT SWITCH /  SOLENOID VALVE


                    REPAIR KIT => SEAT, JOINT GASKET, THRUST WASHER, STEM PACKING

Production of chemicals,

Gas Industry, Oil refineries, Water treatment,

Industrial Facilities,

Building Facilities,
