• 3 PC BALL VALVE WITH OCTAGONAL CAP

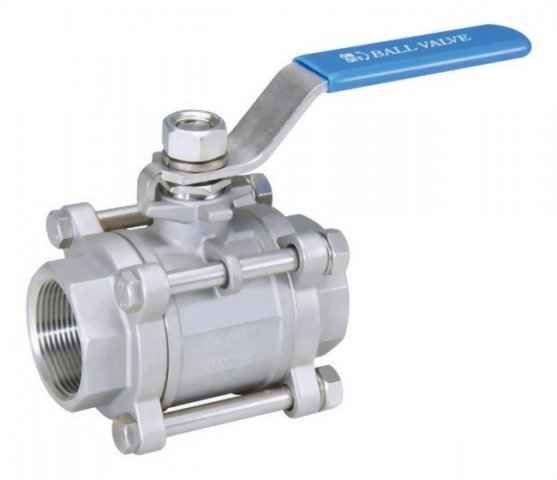

3 PC BALL VALVE - A3TH

There are 3 piece ball valves that allow one bolt removal for ease of maintenance.
The 3 piece ball valve is available with threaded, socket weld, butt weld.
Model : A3TH

Please select which you want to ask the following product specifications:

*Selection:

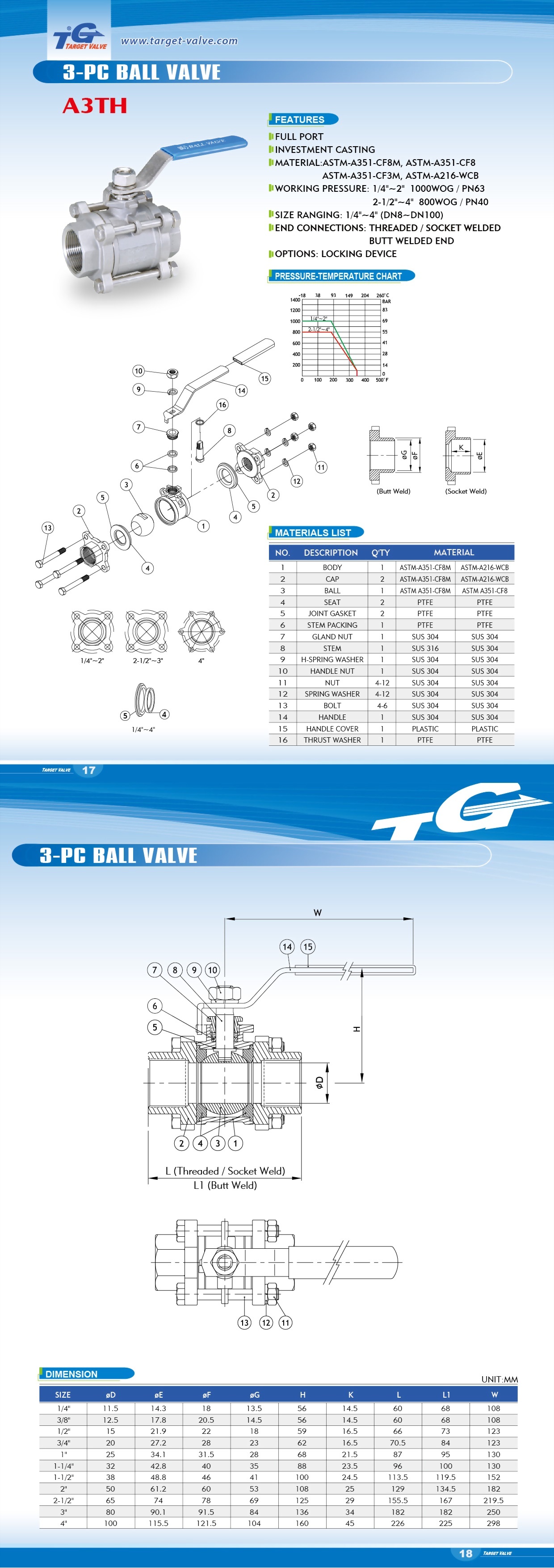

3-PC BALL VALVE  (OCTAGONAL CAP)

FULL PORT

INVESTMENT CASTING

PTFE SEAT

WORKING PRESSURE : 1000 WOG / PN63 ( ¼" - 2")

                                            800 WOG / PN40 (2-½" - 4")

END CONNECTIONS :               (A3TH)                    /              (A3SWH)              /            (A3BW)
                                      FEMALE THREADED END / SOCKET WELDED END  /  BUTT WELDED END

AVAILABLE SIZE:      ¼" - 4"
                                 (DN8 - DN100)

MATERIAL: CF8M (SS316)

ACCEPTABLE OTHER MATERIAL OF CF8 (SS304) / CF3M (SS316L) / WCB WITH MINIMUM ORDER QUANTITY.

3 PC BALL VALVE - A3TH

OPTIONS : LEVER OPERATION (-NL) / LOCKING OPERATION (-HL)

                   REPAIR KIT => SEAT, JOINT GASKET, STEM PACKING, THRUST WASHER


A full port or more commonly known full bore ball valve has an over-sized ball so that the hole in the ball is the same size as the pipeline resulting in lower friction loss. Flow is unrestricted but the valve is larger and more expensive so this is only used where free flow is required, for example in pipelines which require pigging.


Floating Ball Valve– A floating ball valve is not held in place by a trunnion, and instead is attached only to the stem. This sometimes causes the ball to float slightly downstream. However, when this happens, the ball presses against the seat, creating a positive seal.

Production of chemicals,

Gas Industry, Oil refineries, Water treatment,

Industrial Facilities,

Building Facilities,
