3 PC FLANGED BALL VALVE - H3FC150
We are love provide our ball valve price for your reference, please send your inquiry.
Please select which you want to ask the following product specifications：
| *Selection: |

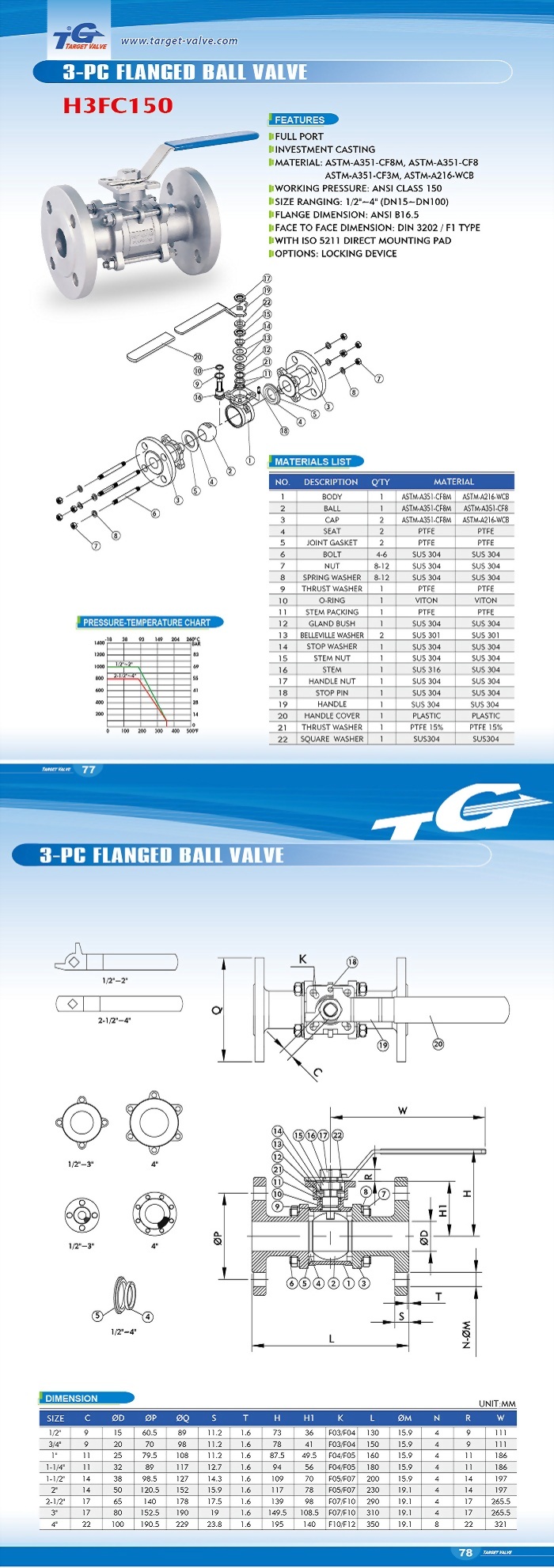

3 PC FLANGED BALL VALVE
FULL PORT
INVESTMENT CASTING
PTFE SEAT
WORKING PRESSURE: ANSI CLASS 150 (RF)
FLANGE DIMENSION : ANSI B16.5
FACE TO FACE DIMENSION : DIN 3202 / F1 TYPE
WITH ISO 5211 DIRECT MOUNTING PAD
AVAILABLE SIZE: ½" - 4"
(DN15 - DN100)
MATERIAL: CF8M (SS316)
ACCEPTABLE OTHER MATERIAL OF CF8 (SS304) / CF3M (SS316L) / WCB WITH MINIMUM ORDER QUANTITY.
OPTIONS : LEVER OPERATION / LOCKING OPERATION / BARE STEM
SPRING RETURN ACTUATORS / DOUBLE ACTING ACTUATORS / ELECTRIC
ACTUATORS
The
sizing of pneumatic actuators has been done considering a minimum supply
pressure of 4.5 bar.
LIMIT SWITCH / SOLENOID VALVE
REPAIR KIT => SEAT, JOINT GASKET, THRUST WASHER, O-RING, STEM PACKING, THRUST WASHER
Production of chemicals,
Gas Industry, Oil refineries, Water treatment,
Industrial Facilities,
Building Facilities,
